Two Gloves and A Router

Connecting two xOSC gloves via a router to Glover….

Notes


Configure Router

plug in LAN, usb power
open browser type IP 192.168.1.1
login: admin
password: admin

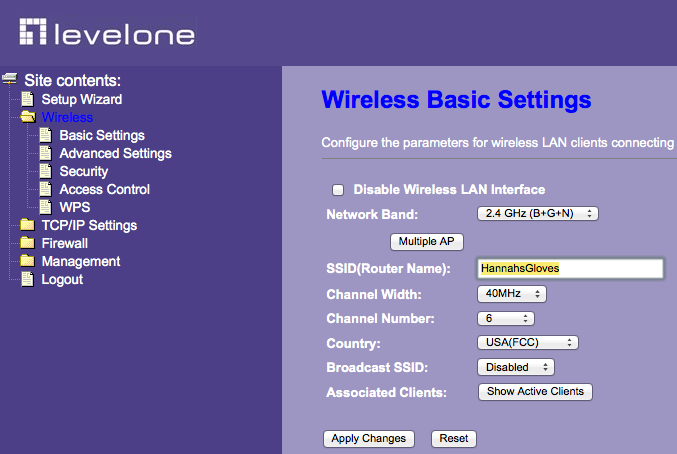

Give Router Name

in the left menu go to the “Wireless” settings
change SSID name to something gloves related, like: “HannahsGloves”

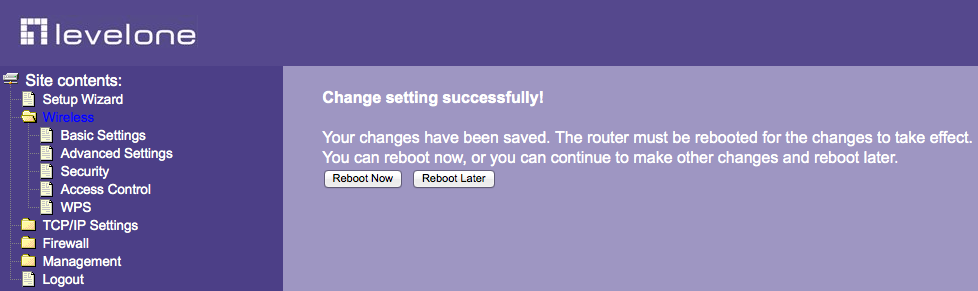

click “Apply changes”


Setup xOSC

power up xOSC
connect computer to xOSC
load xOSC website by going to >> http://169.254.1.1/

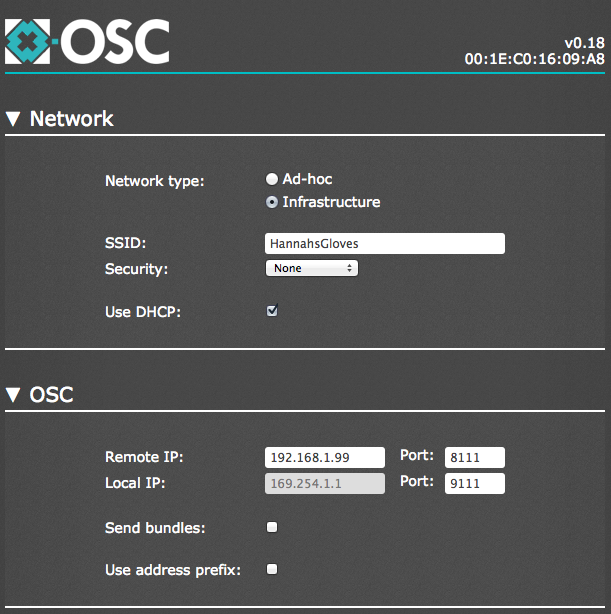

Network Settings

network type = infrastructure
security = open
change SSID name to: “HannahsGloves”
DHCP = tick

OSC Settings

remote IP: 192.168.1.99
ports: 8111, 9111 (for left)
ports: 8222, 9222 (for right)

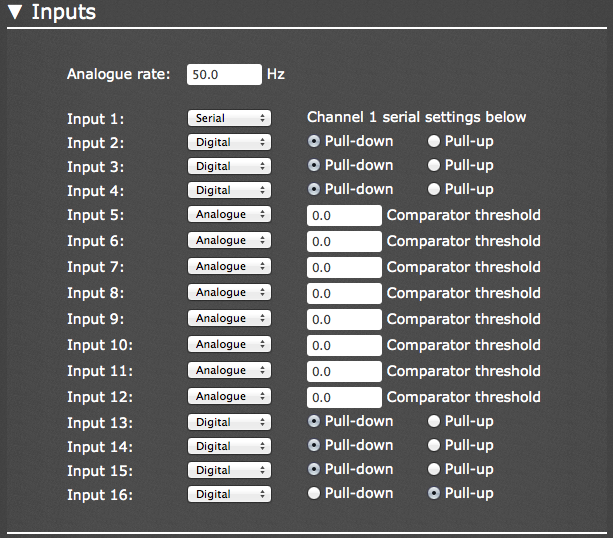

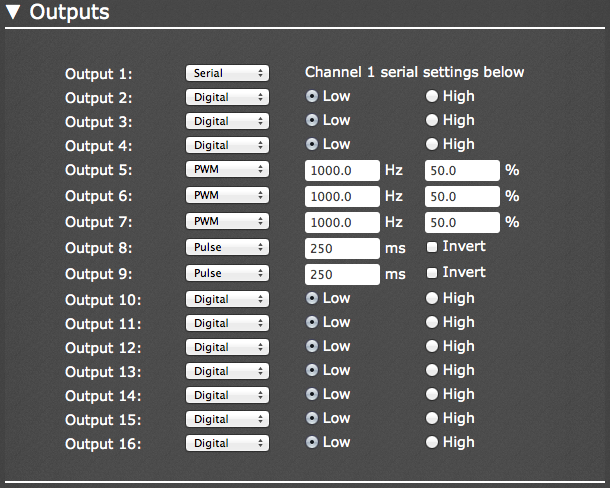

Input & Output Settings

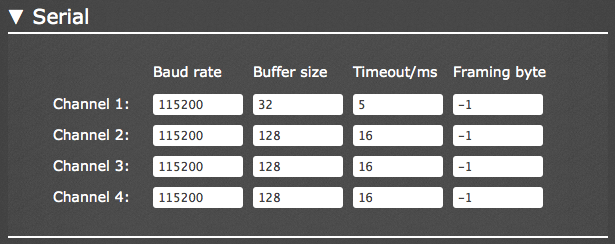

Serial Settings

bauderate 115200
buffer size: 32
timeout/ms: 5
framing byte: -1

Click: “save to xOSC”

Repeat

repeat for second xOSC, all the same settings except:
ports for left glove: 8111, 9111
ports for right glove: 8222, 9222


Computer’s Network Settings

change computer’s static IP address to: 192.168.1.99
>> http://www.howtogeek.com/howto/22161/how-to-set-up-a-static-ip-in-mac-os-x/


Connect xOSCs via Router to Glover

Plug in router via LAN cable and power via USB

Unplug xOSC from battery and re-power (I found it otherwise no longer connected)
xOSC should now connect
