xOSC Gloves

A pair of gloves using a new i/o board called xOSC developed by Tom and Seb called xOSC which has 16 inputs and 16 outputs and uses Wifi as wireless technology. However the xOSC has no on-board IMU sensors, so we need to add an additional IMU module, the x-BIMU.


- maintain access to xBIMU USB socket for charging?
- magnetometer as far away from circuitry as possible and fixed position if in proximity to xOSC
- giver user magnetic calibration tools (1/2 hour to calibrate)
- don’t use all analog inputs and digital outputs, keep serial connections free
- no multiplexing on xOSC, too much data back and forth with changing pin states
- no internal pull-up resistors for analog inputs (yes for digital)
- add resistors for RGB LED
- …

xOSC Glove V6

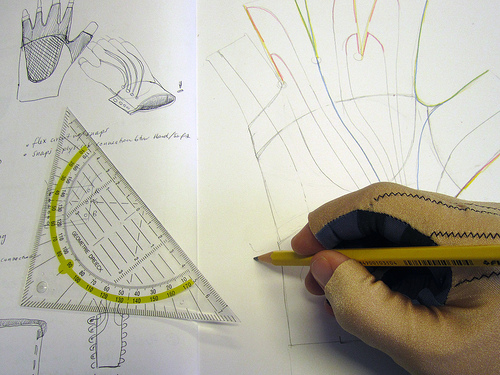

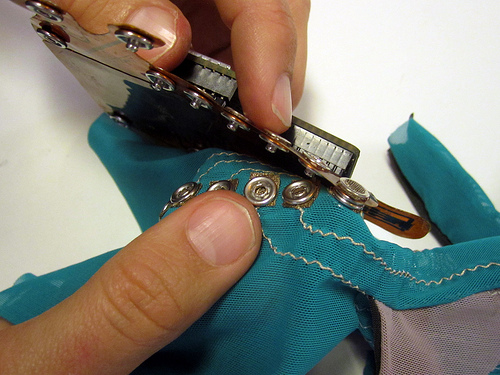

Using Eeontex fabric for sensing and flex breakout circuit for xOSC and xBIMU.

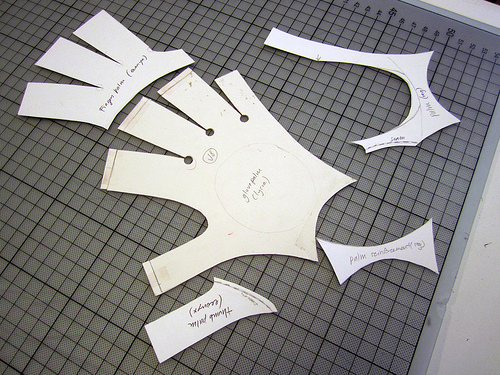

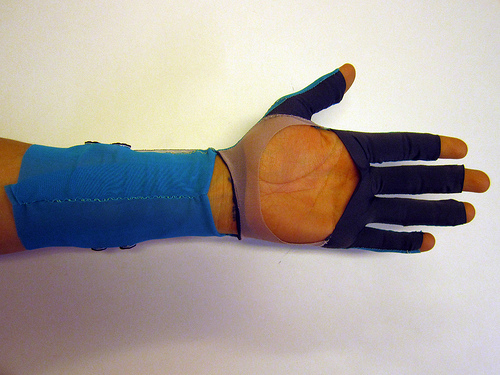

Fronts and backs:

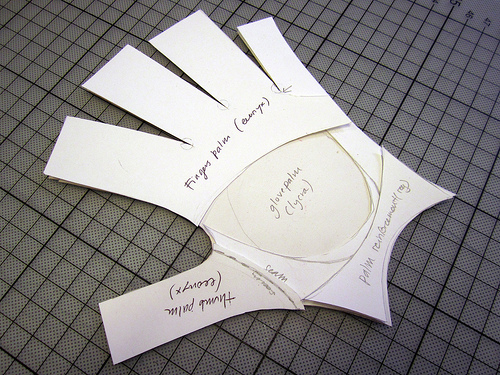

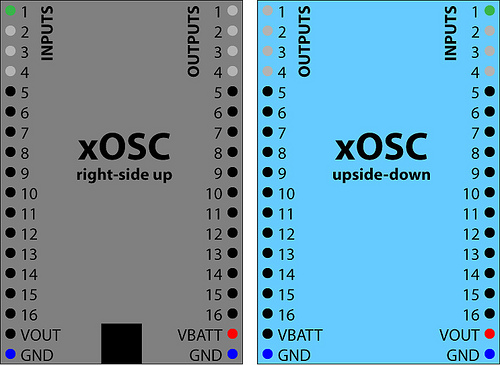

Specialised headers for x-OSC:

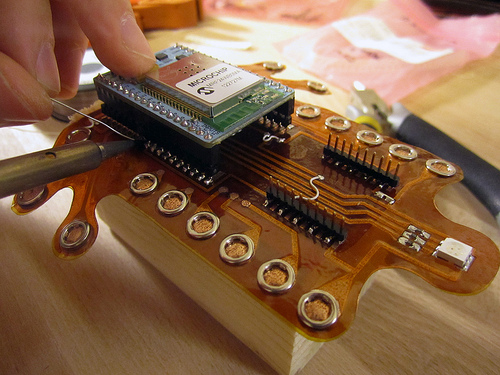

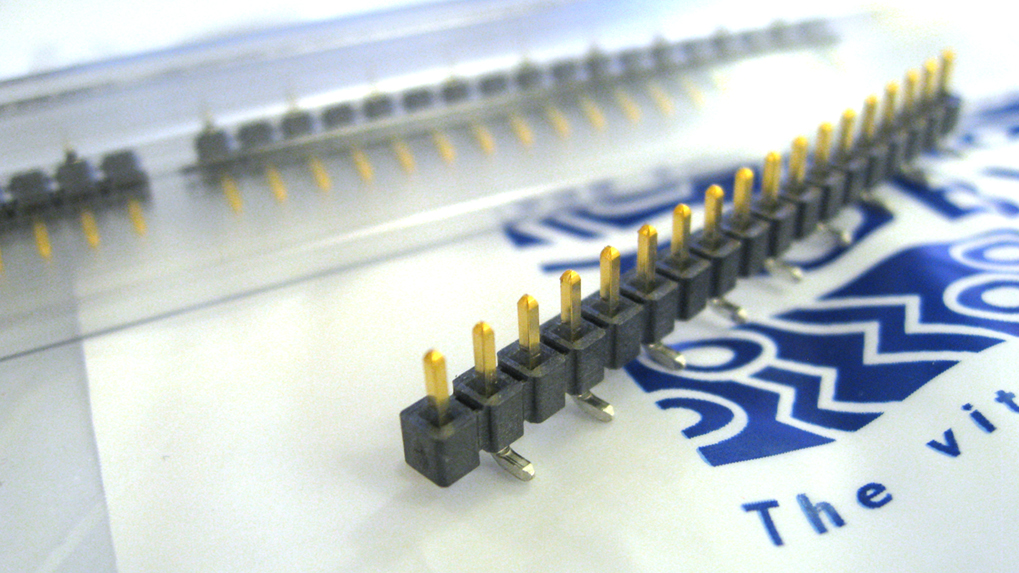

x-OSC SMD Header
SMD low-profile male header; Part number: TSM-118-04-F-SV. Sample from Toby Electronics.

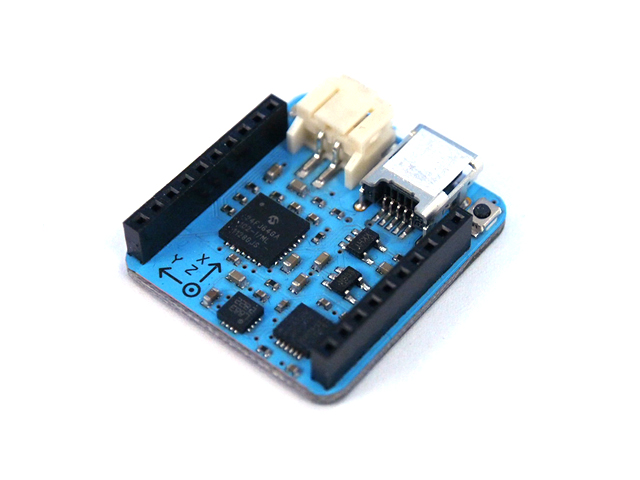

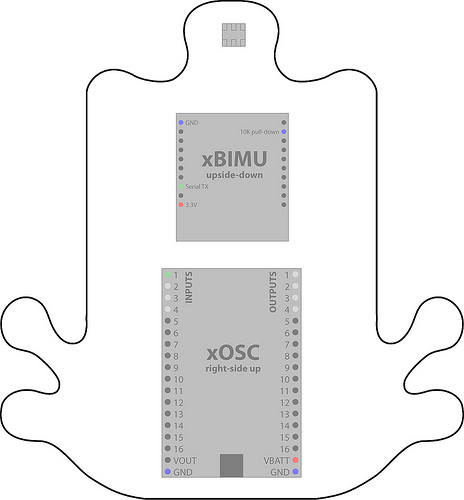

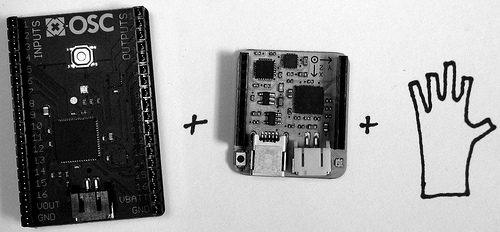

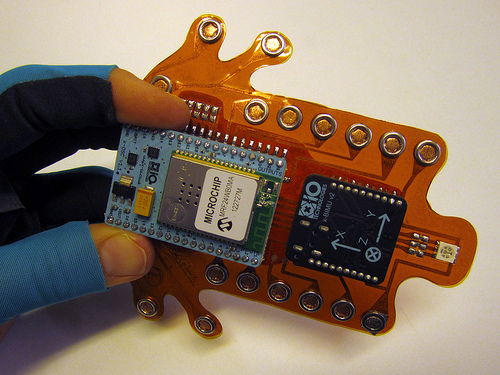

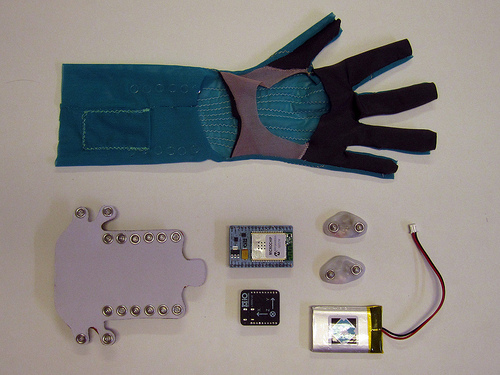

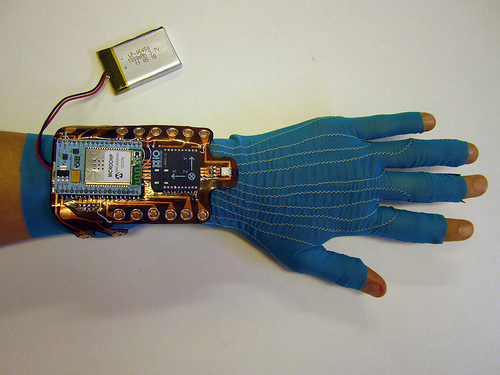

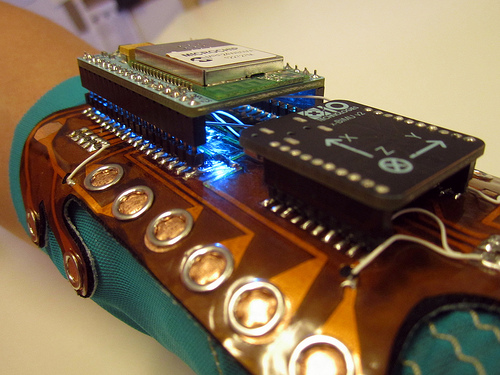

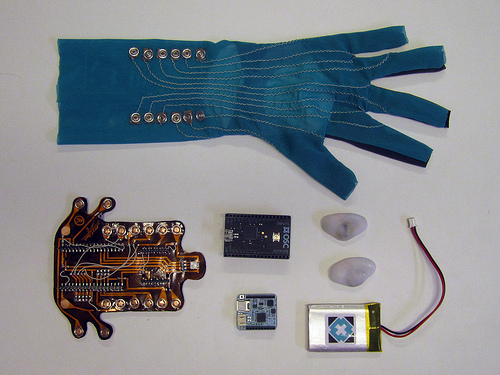

xOSC and xBIMU:

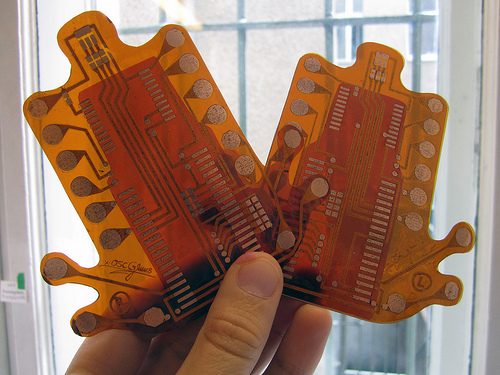

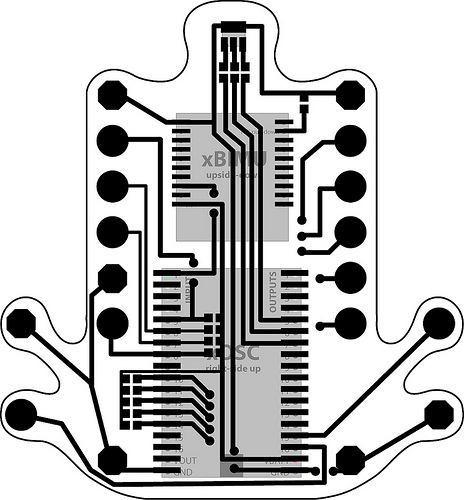

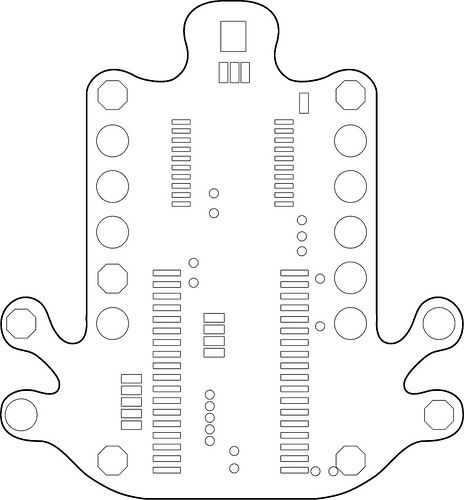

Flex circuit layout:

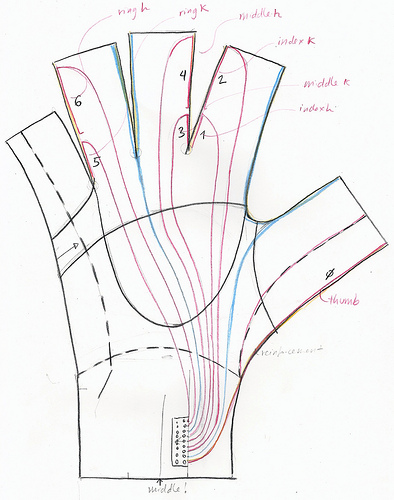

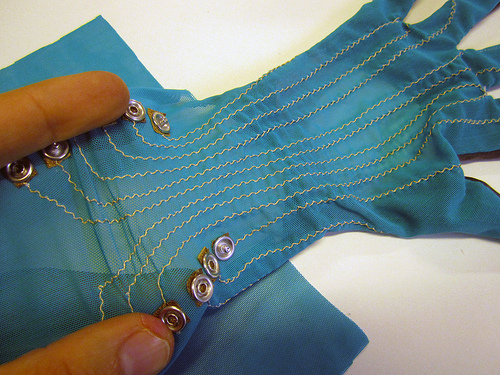

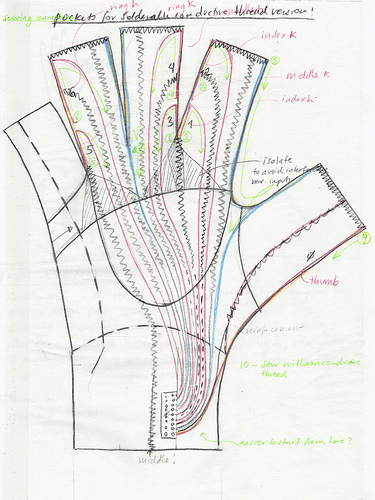

Sewn connection layout:


Adam & Kelly’s Processing Sketch

Record something like 100 of each posture (in different text files) for the following 8 postures using the e-textile sensors:
- fist
- puppet hand
- one finger point
- two finger point
- three finger point
- open hand
- thumbs up
- secret finger

Logged Data Files >> https://github.com/plusea/CODE/tree/master/PROJECT%20CODE/Gloves/AdamKelly-glove-data-analysis/data/txt

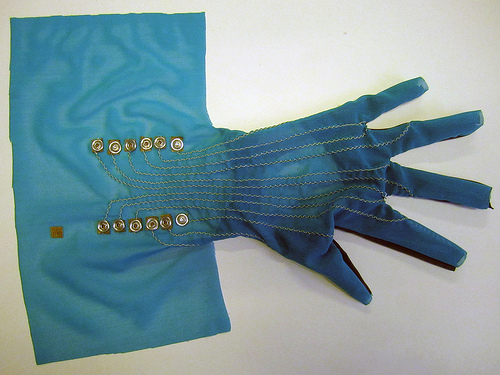

xOSC Glove V5

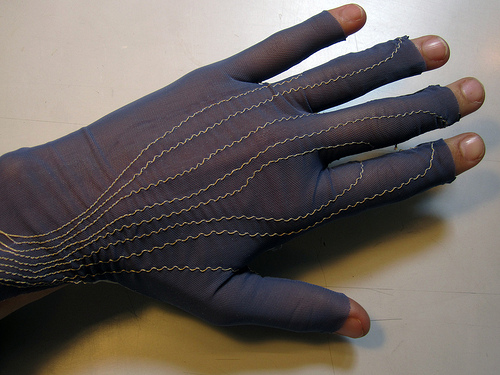

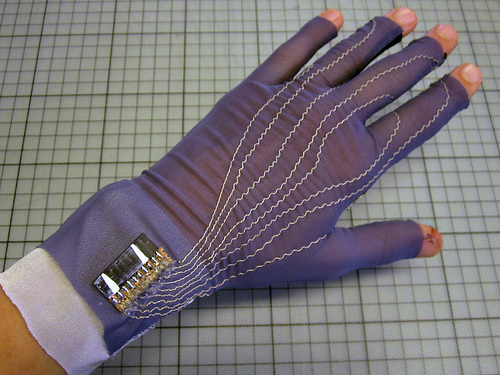

Using Eeontex fabric for sensing and solderable conductive thread for traces.
>> http://www.ceiarteuntref.edu.ar/wearable_absence

xOSC Glove V4



xOSC Glove V3

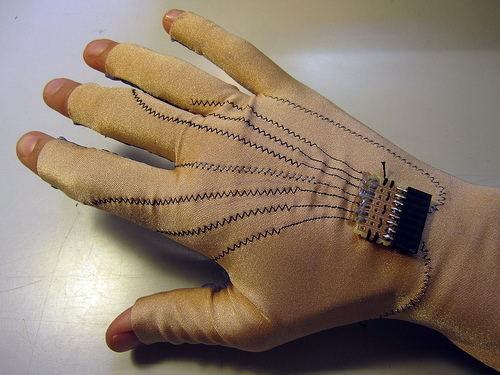

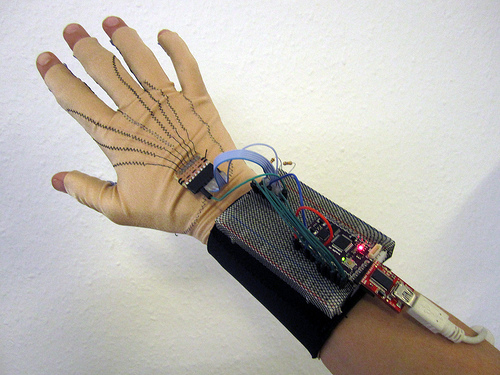

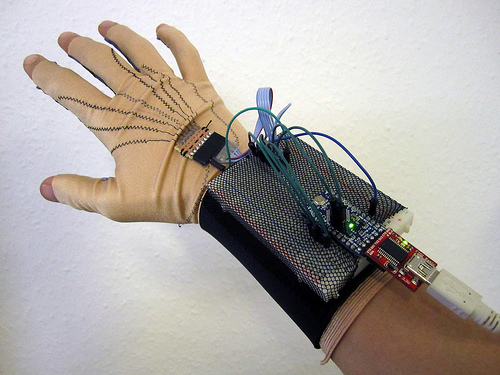

Arduino and ArduIMU prototyping setup for reading sensor values:

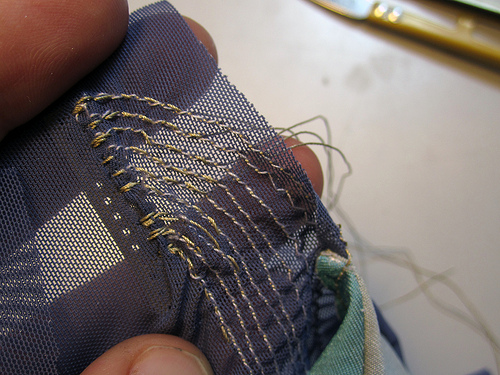

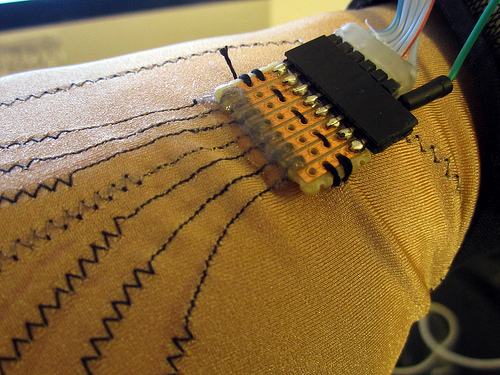

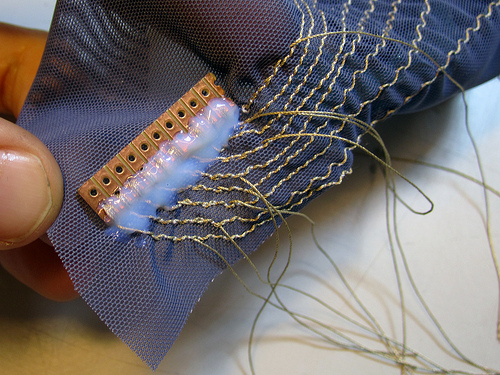

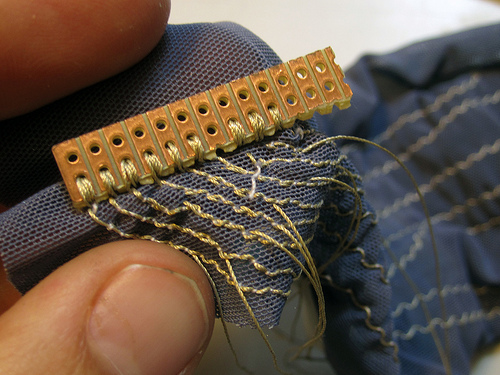

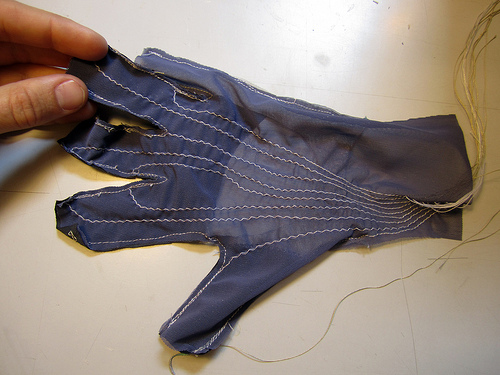

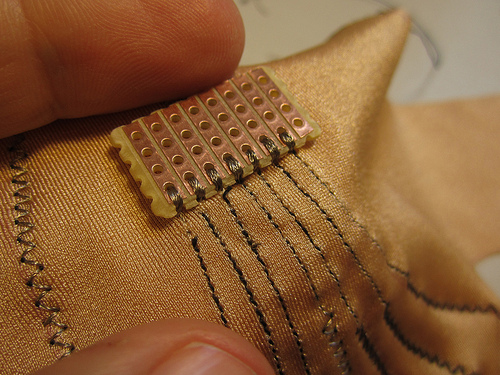

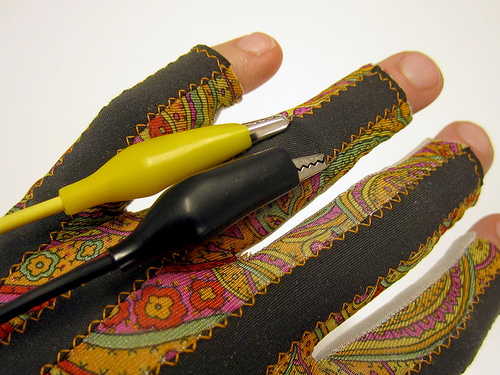

Sewn hard/soft connections:

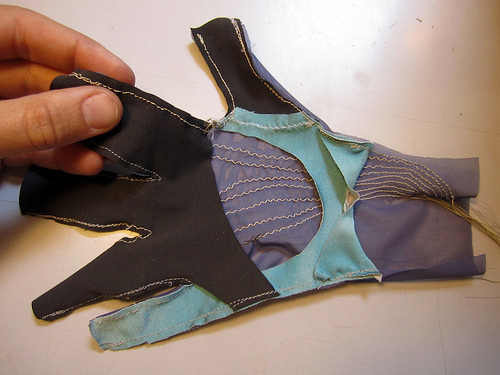

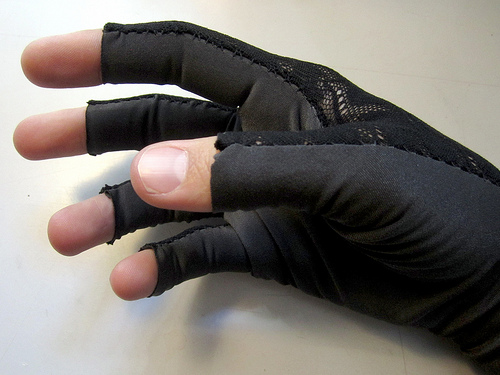

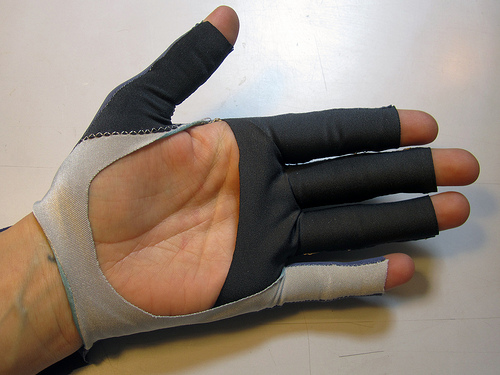

Back and front:

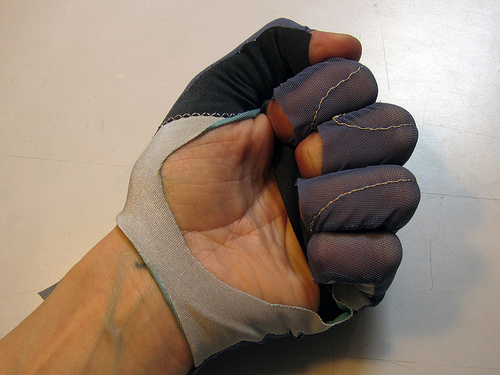

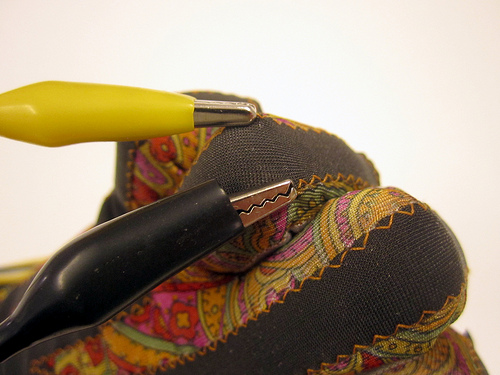

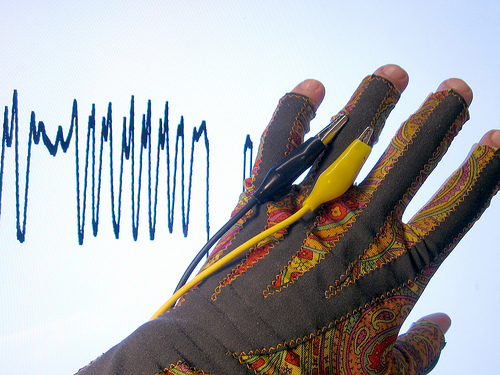

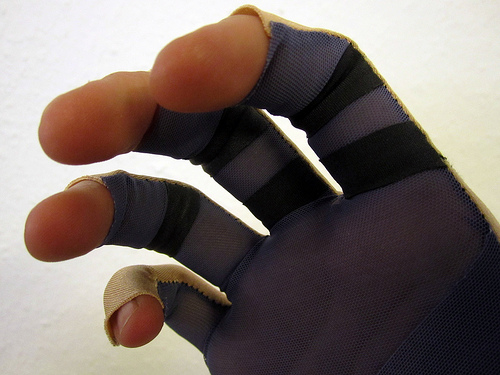

Squishing of Eeontex fabric is what senses:


Video of glove with Glover:

Video of glove with Processing sketch:

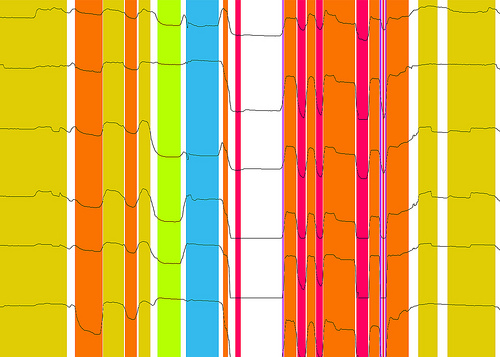

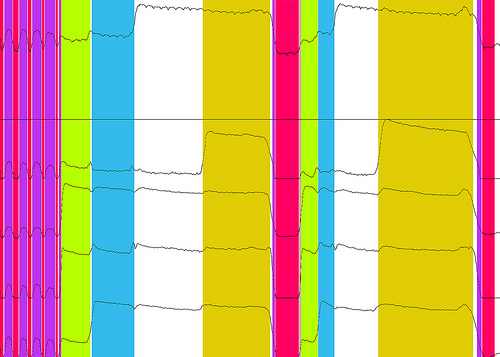

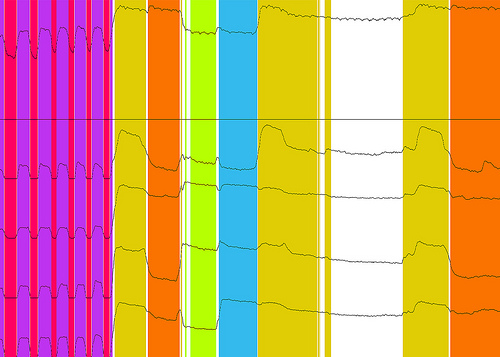

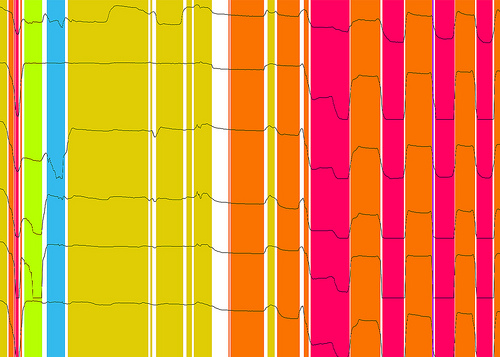

yellow = open hand
orange = puppet hand (also triggers with middle finger point)
green = one finger point
blue = two finger point
purple = fist
pink = tight fist

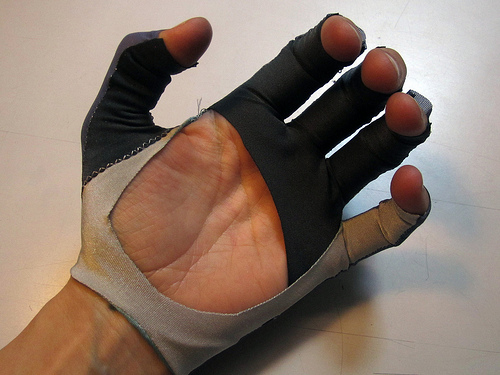

xOSC Glove V2

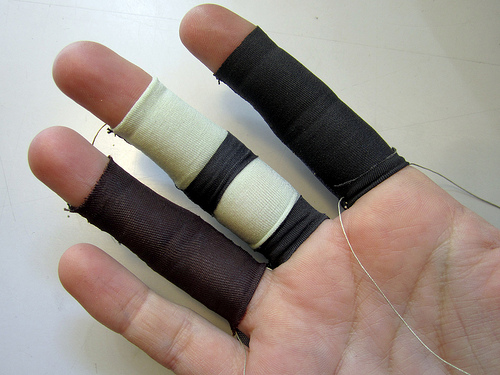

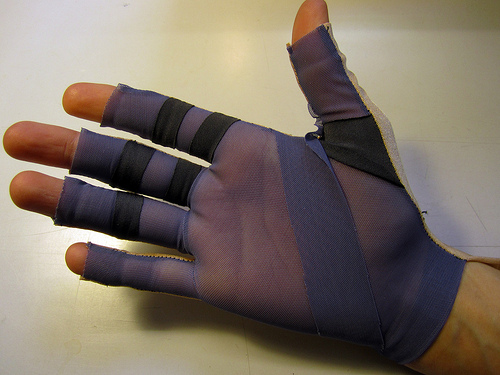

Three fingers:

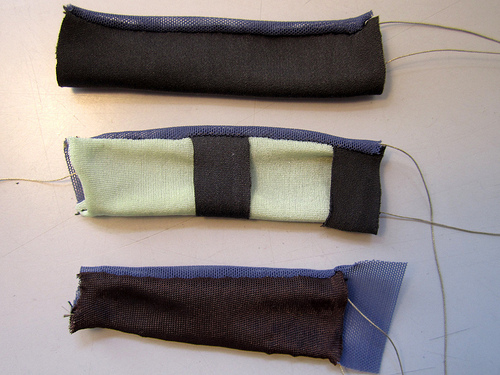

1) Eeontex LTT SLPA MM 1-58B (full finger)
2) Eeontex LR SLPA MM-1-54 (stripe)
3) Eeontex LR SLPA MM-1-54 (full finger)

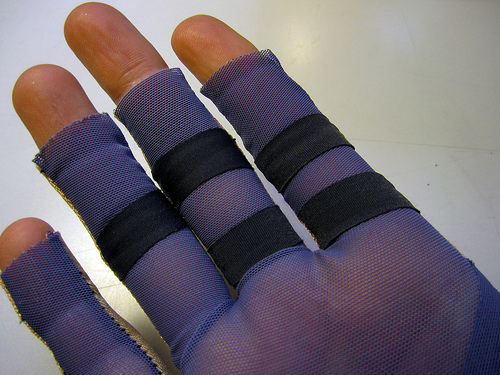

Full hand:
1) Eeontex LR SLPA MM-1-54 (contacts between fingers)
2) Eeontex LR SLPA MM-1-54 (contacts either side of knuckle)


xOSC Glove V1

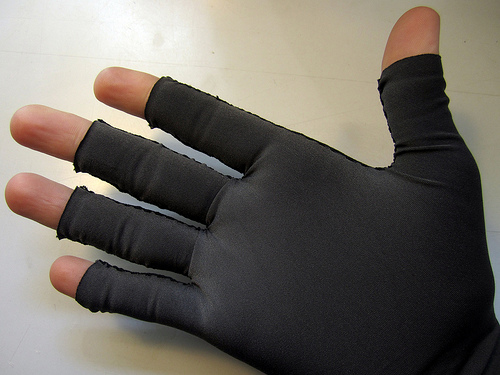

Relaxed, stretched:

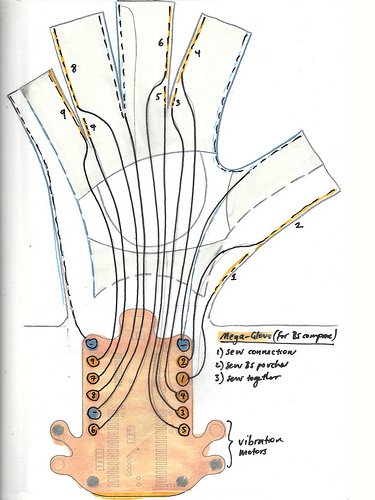

Seb’s circuit sketch

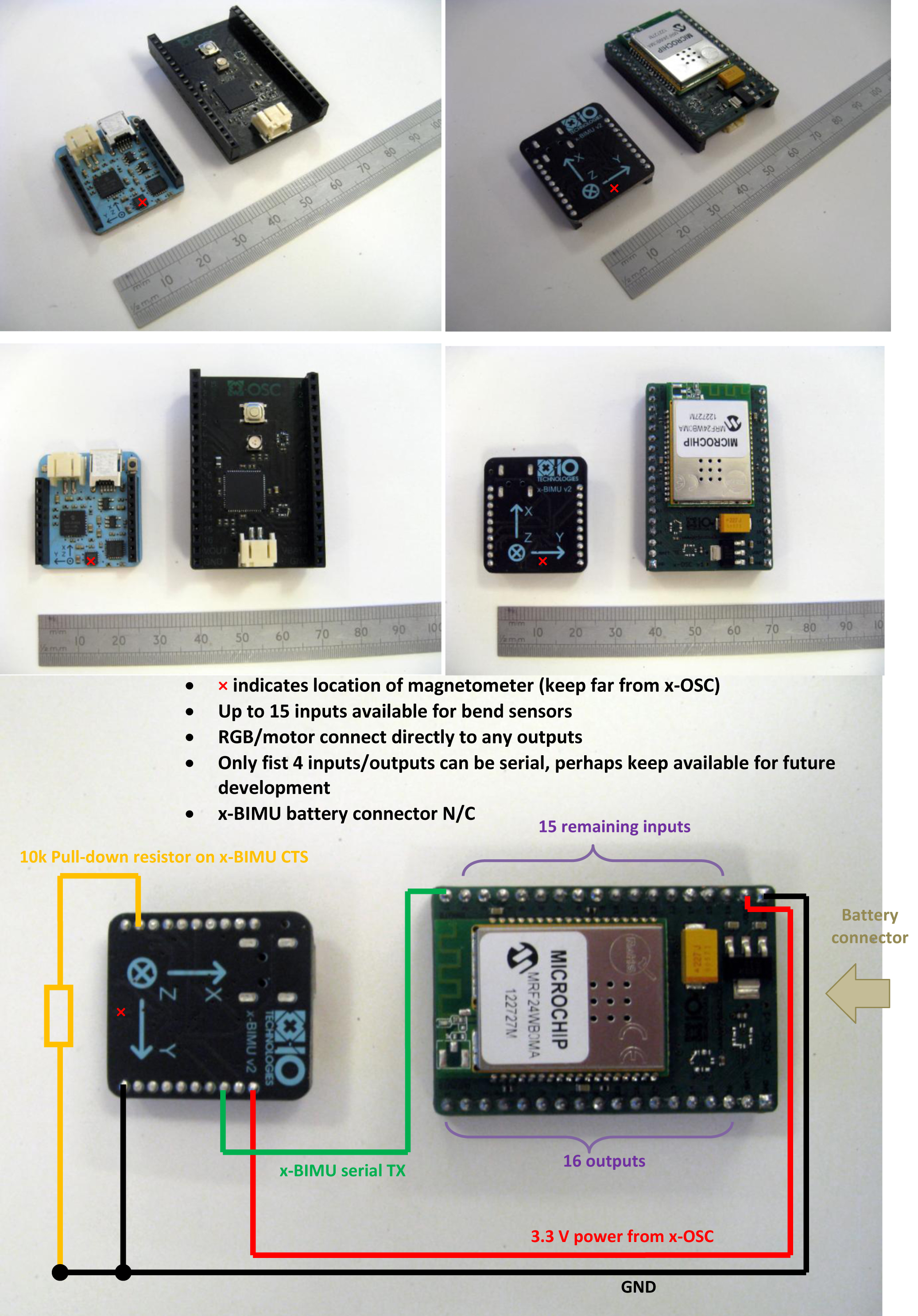

x-OSC Gloves Wiring

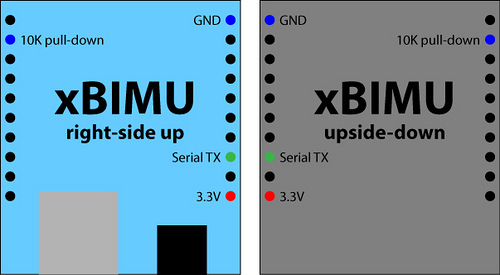

xOSC and xBIMU
