Breakout Board for NIME
Everything that needs to be done in time for NIME!!!
Have ready to meet in London:
- bend sensors ordered
- all parts ordered (flexible wire, connectors, leds, resistors, RGB leds…???)
- pcb soldered and ready to go
- rachel has gloves made
Do in London:
- assembly of led, bs, motors, cuff

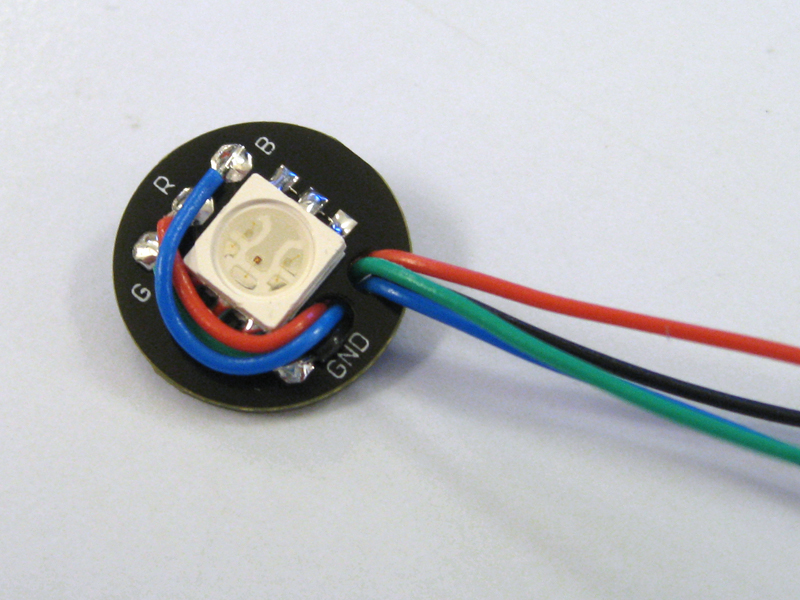

Assembled and tested PCBs:

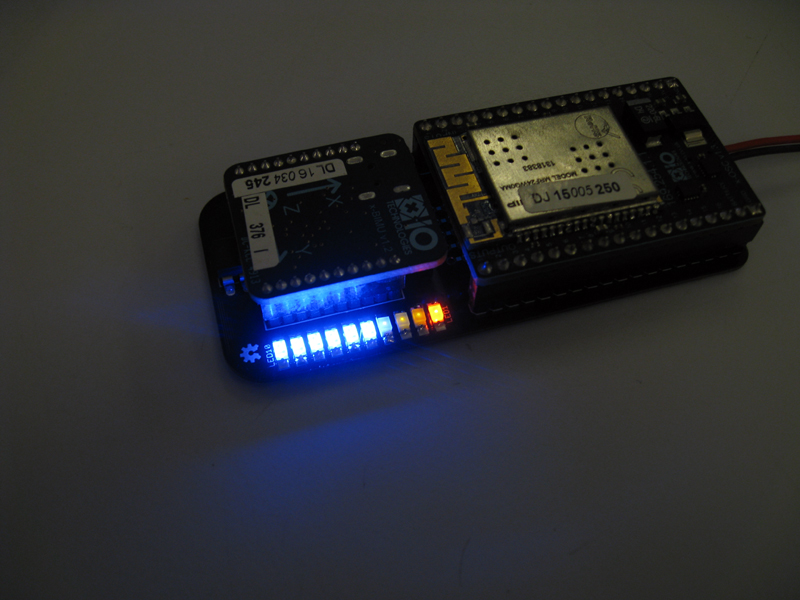

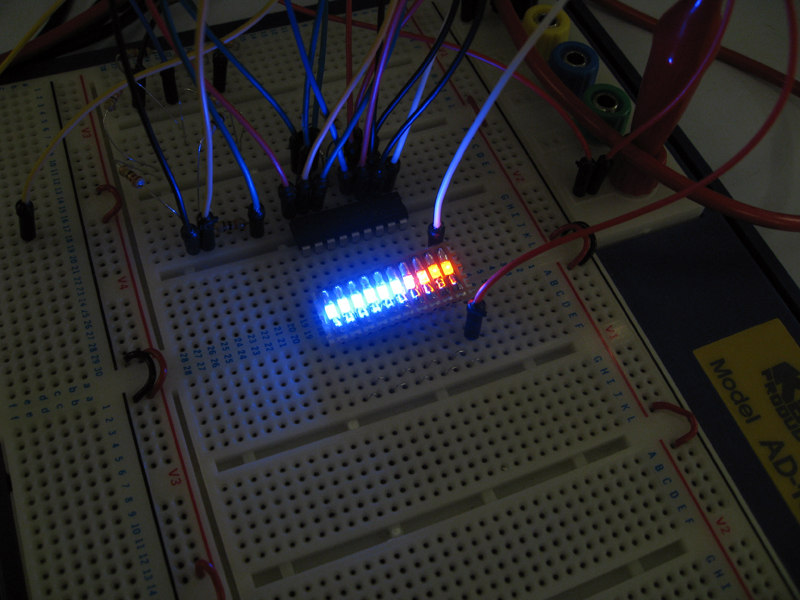

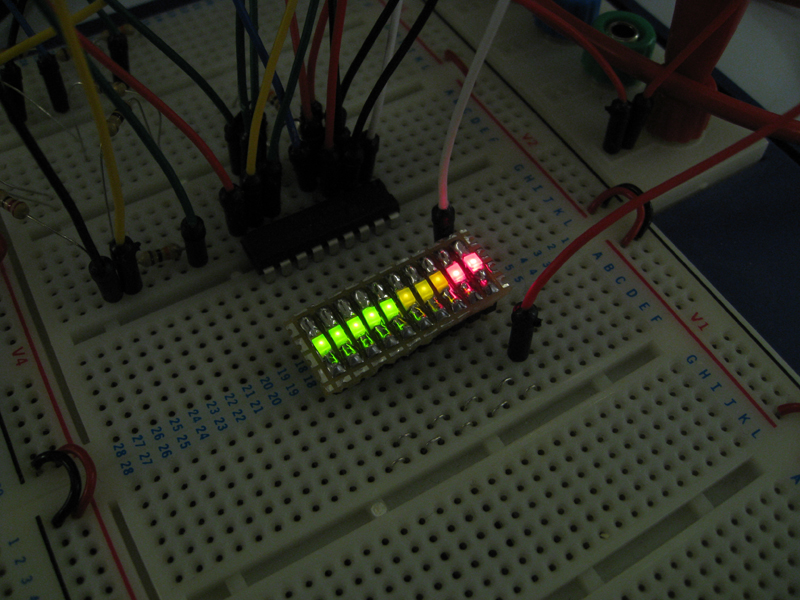

Differnt battery meter LED combinations. The intended combination of orange/yellow/blue (left photo) dosn’t work because yellow LEDs are too dim. Orange/blue (middle photo) may work. The classic red/yellow/green (right photo) may also work though all three LEDs are dim:

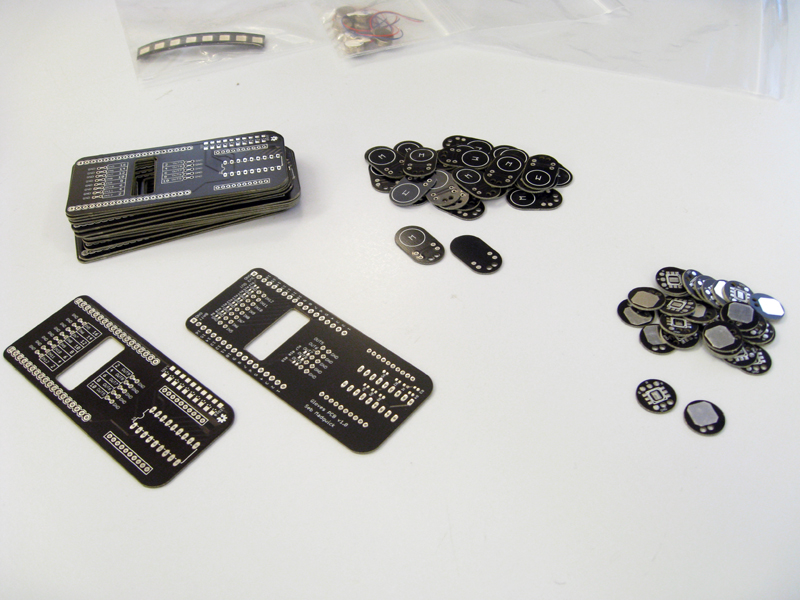

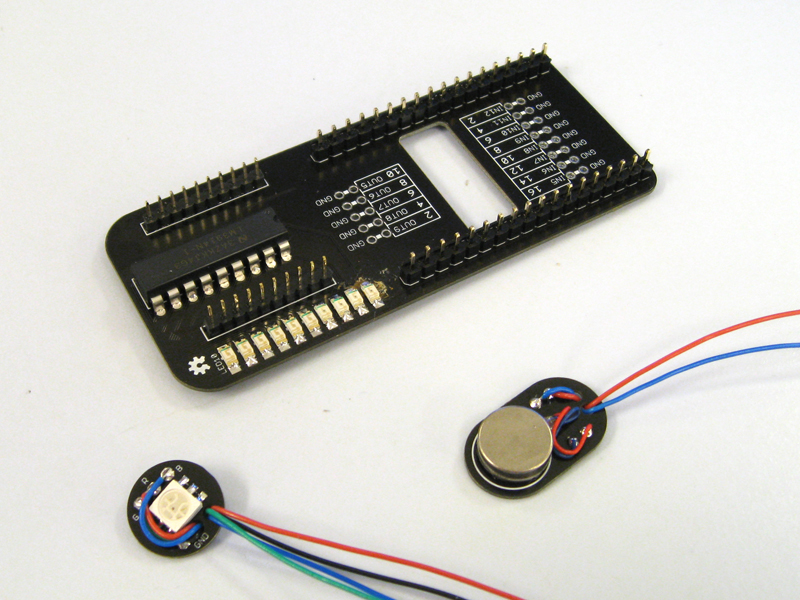

Unpopulated PCBs - Main baord (x16), LED board (x32), Motor board (x32):

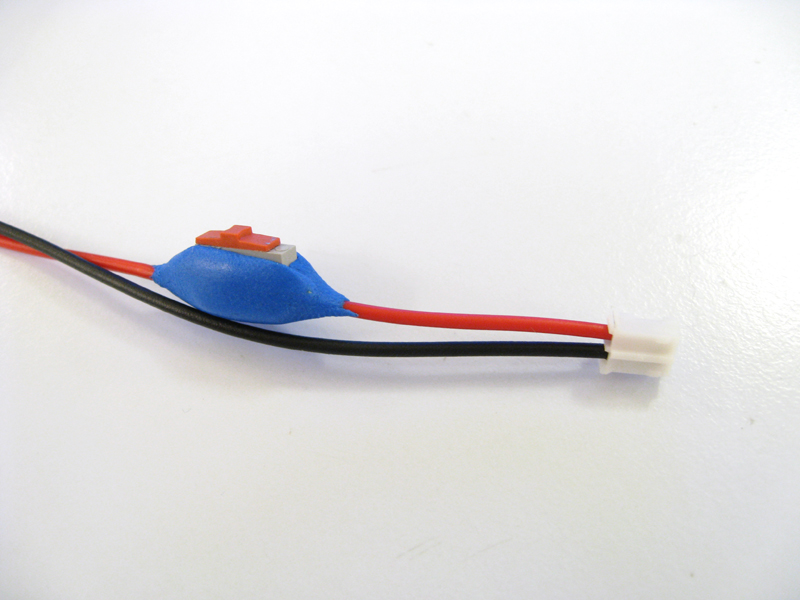

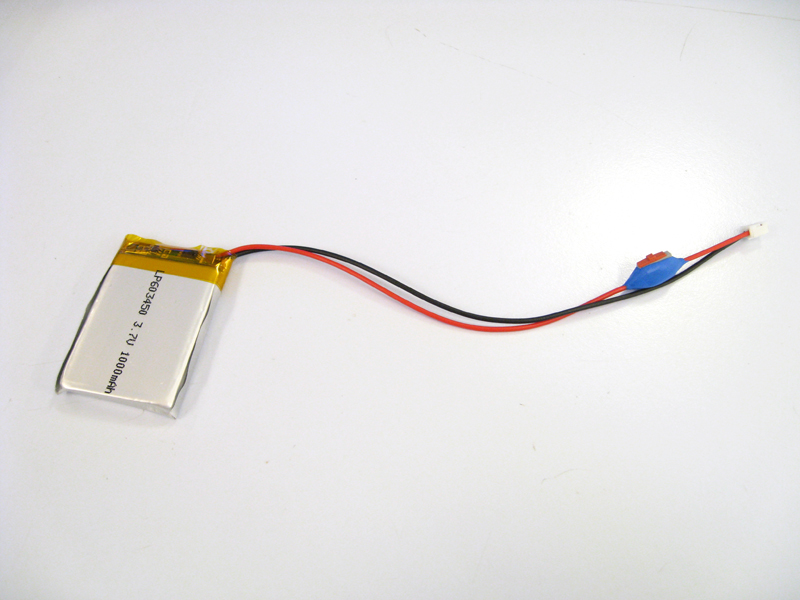

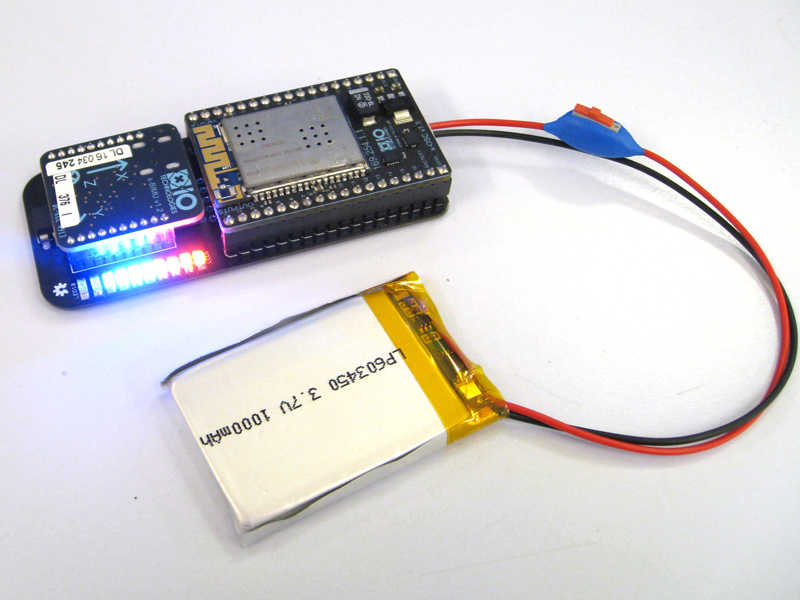

Battery with in-line switch (shrouded in sugru):

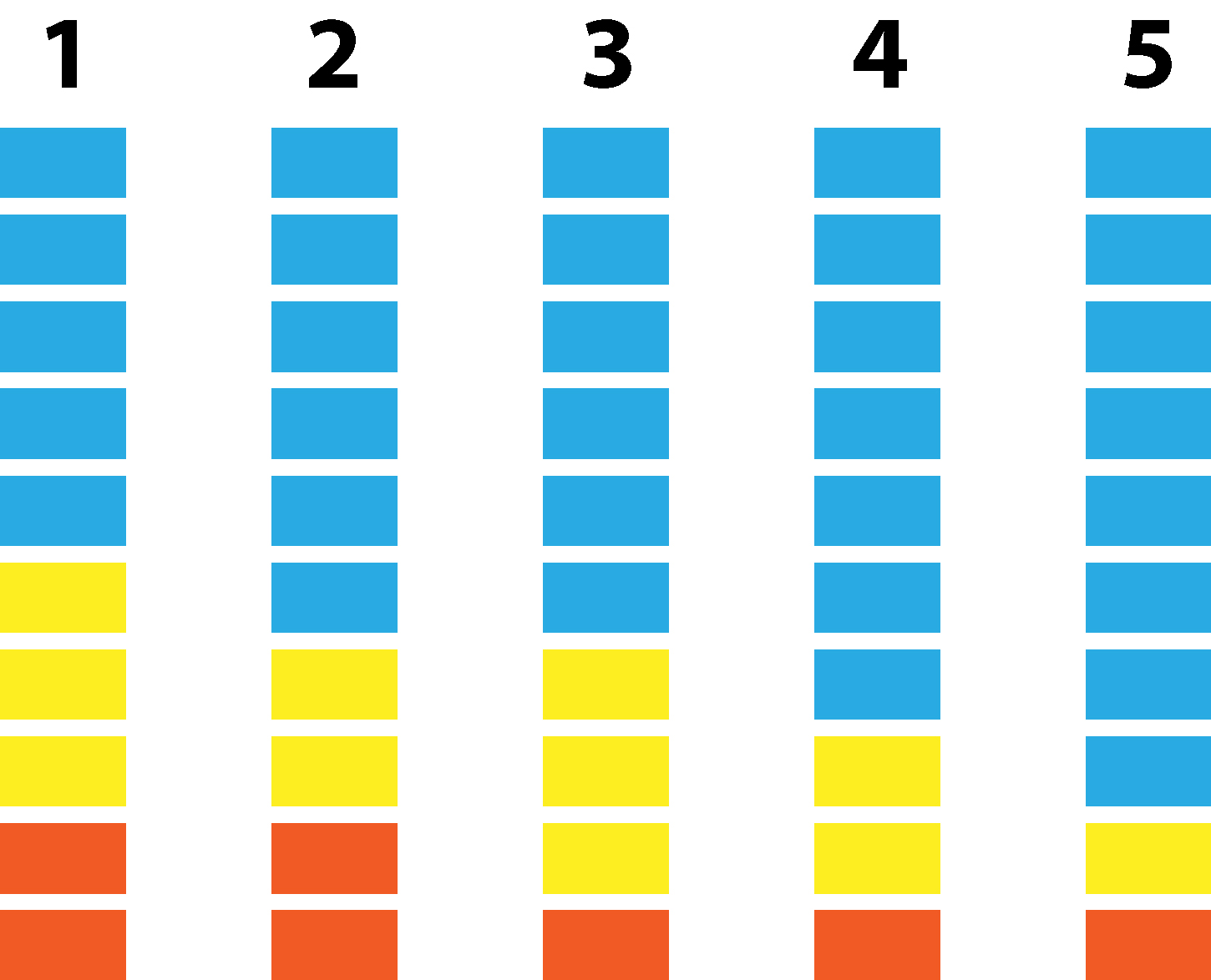

LED power status bar-graph colours:

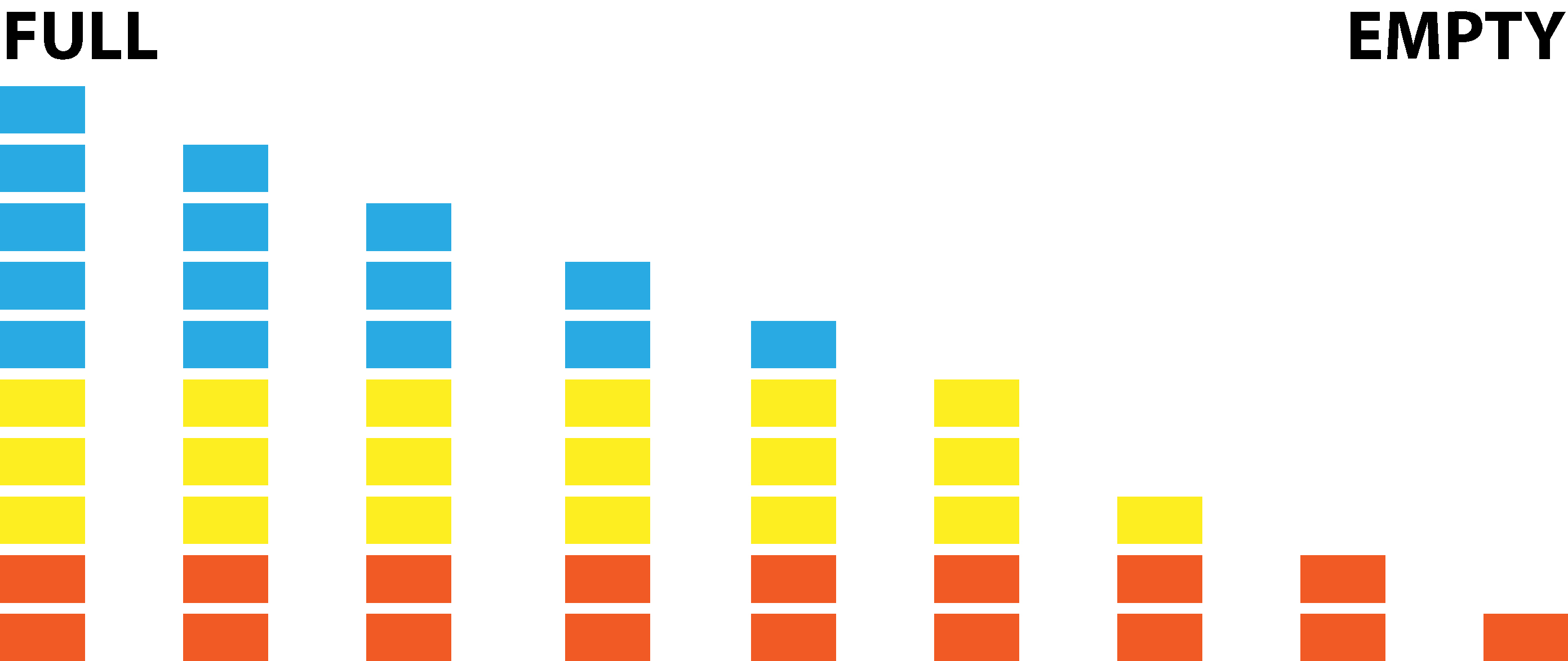

Full -> Empty:

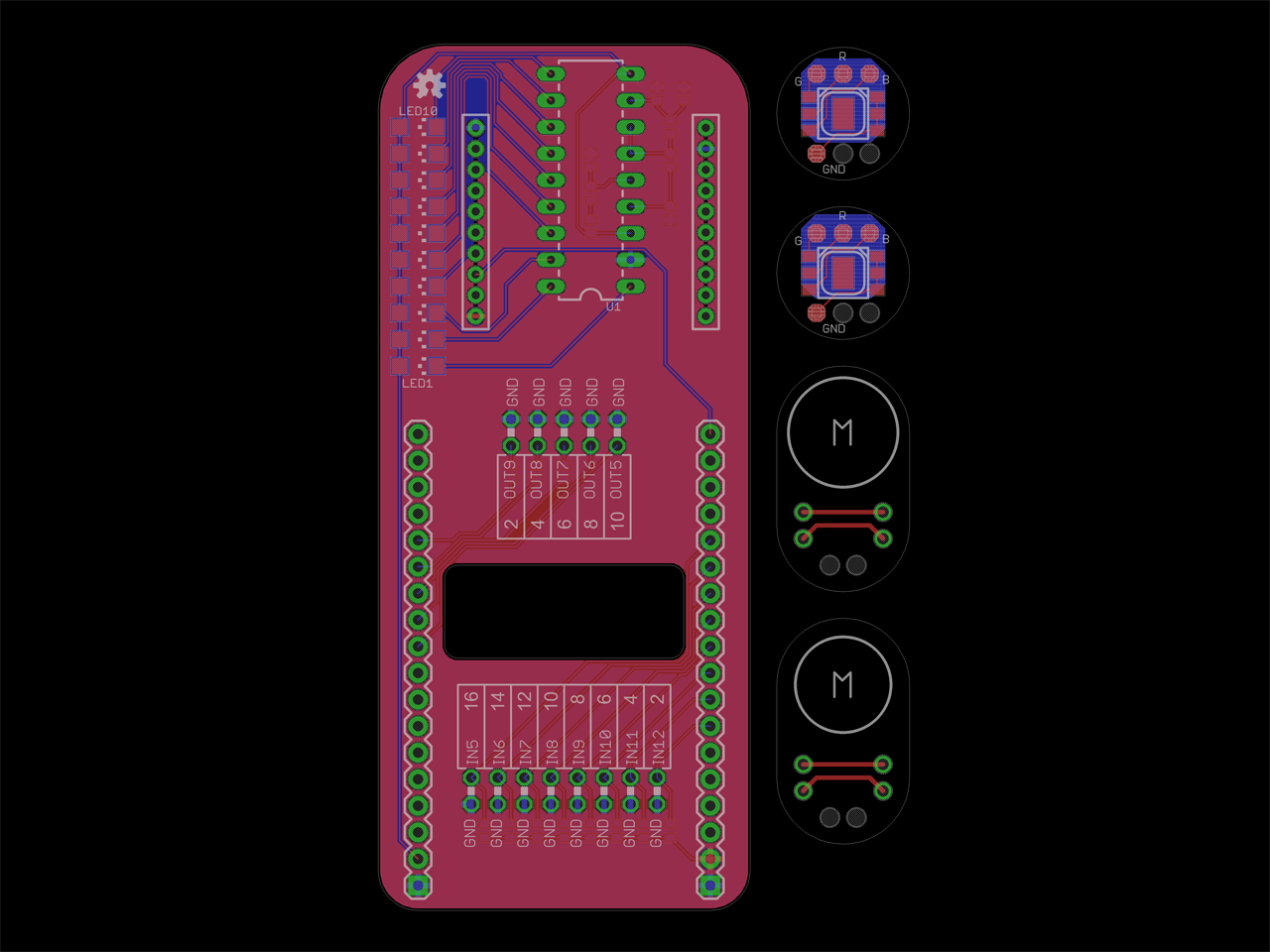

Seb’s board design for x-BIMU with x-OSC (on GitHub):

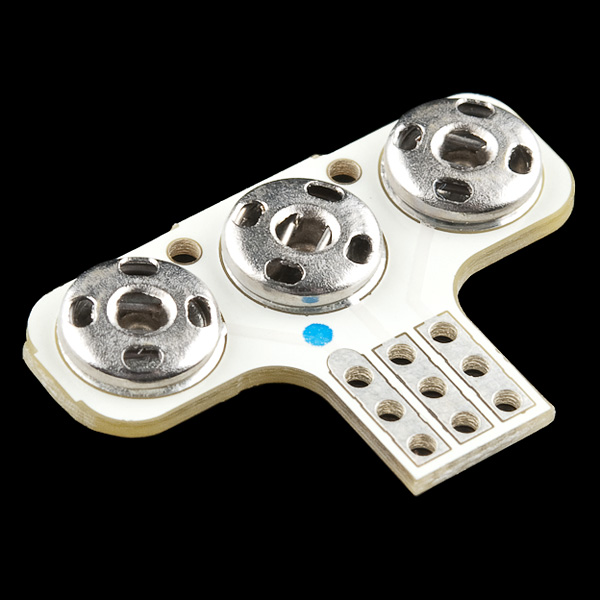

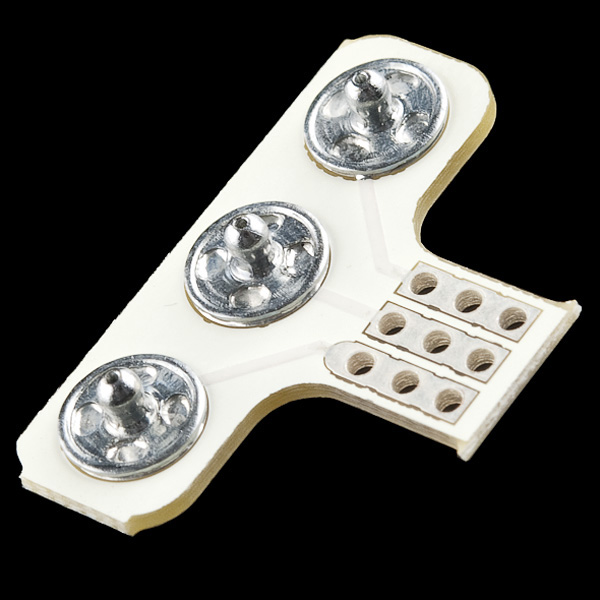

Male and female snaps soldered to a PCB:
>> http://skpang.co.uk/catalog/fabrickit-snap-brick-female-p-852.html
